Gantry Crane
본문
Hankoo Jogyung
Ship Building
Product Qualification
- Rated Load :2t / 2.8/ 3t / 5t / 7.5t / 10t / 15t / 20t/ 30t/ 35t/ 50t/ 60t/ 70t / 80t / 100t / 120t/ 140t / 160t
- Rated Load (Main ) :(7.5/3)t, (10/3)t, (15/3)t, (10/5)t, (15/5)t, (20/5)t, (30/5)t, (40/5)t, (40/10)t, (50/10)t, (60/20)t, (70/20)t, (80/20)t
- Hoist :applicable for Double rail Hoist / Creep Hoist / Inverter Hoist / Combined Hoist
- Span :3m ~ 30m
- Travelling speed :20 ~ 30 m/min ( Soft Starter : 3 ph basic application )
- Currently more INVERTER for Lifting, Traversing, Travelling able to set suitable variable Speed depend on actual working condition Span : 3 m ~ 30 m
-

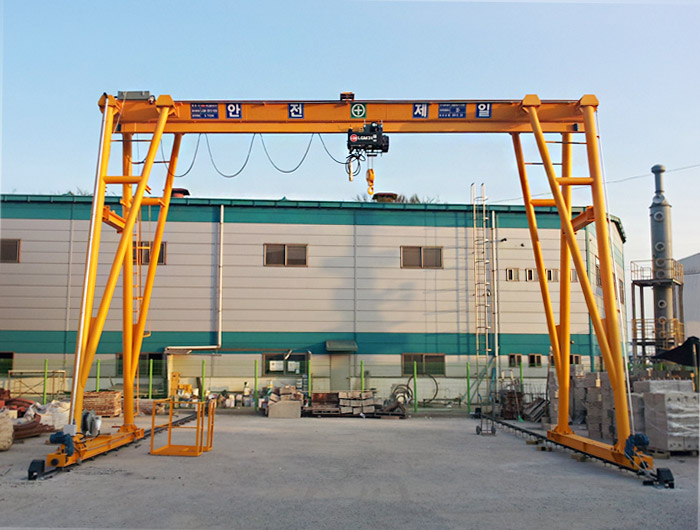

Crane installing at outdoor storage area, job site operating following installed rail either Gantry or Semi Gantry type.
Suitable for higher lifting capacity, wider span, able to extend traversing providing extended cantilever on traveling rail

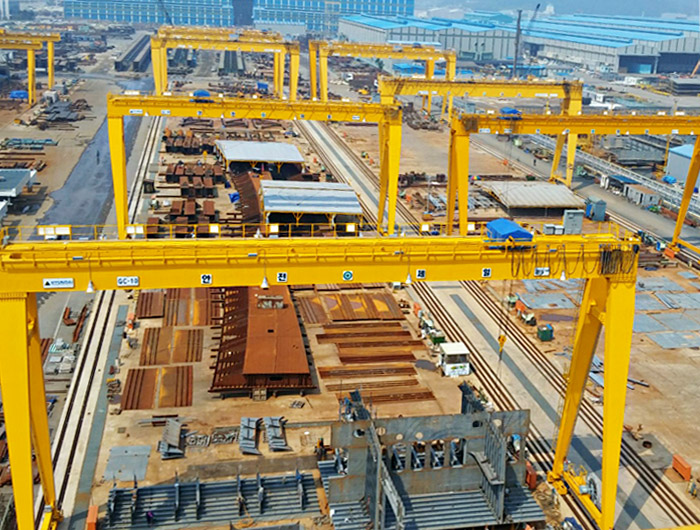

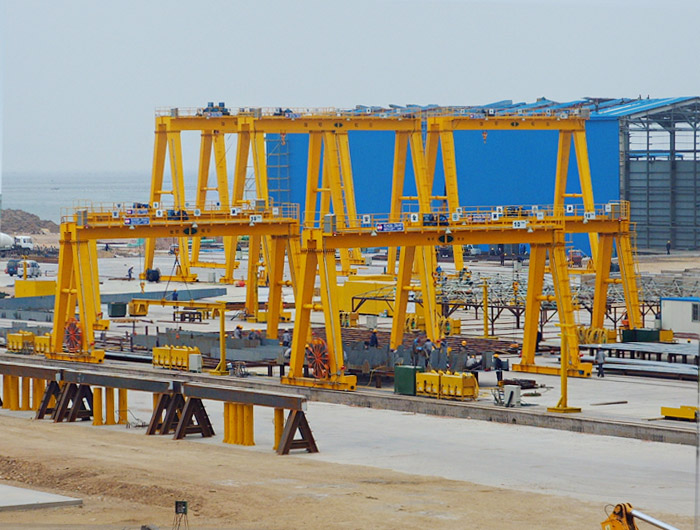

Excellent application at wide space such as Ship building, Storage aree,
Temporary job site due to No limit of Crane height and width.
